Median at crosswalk design

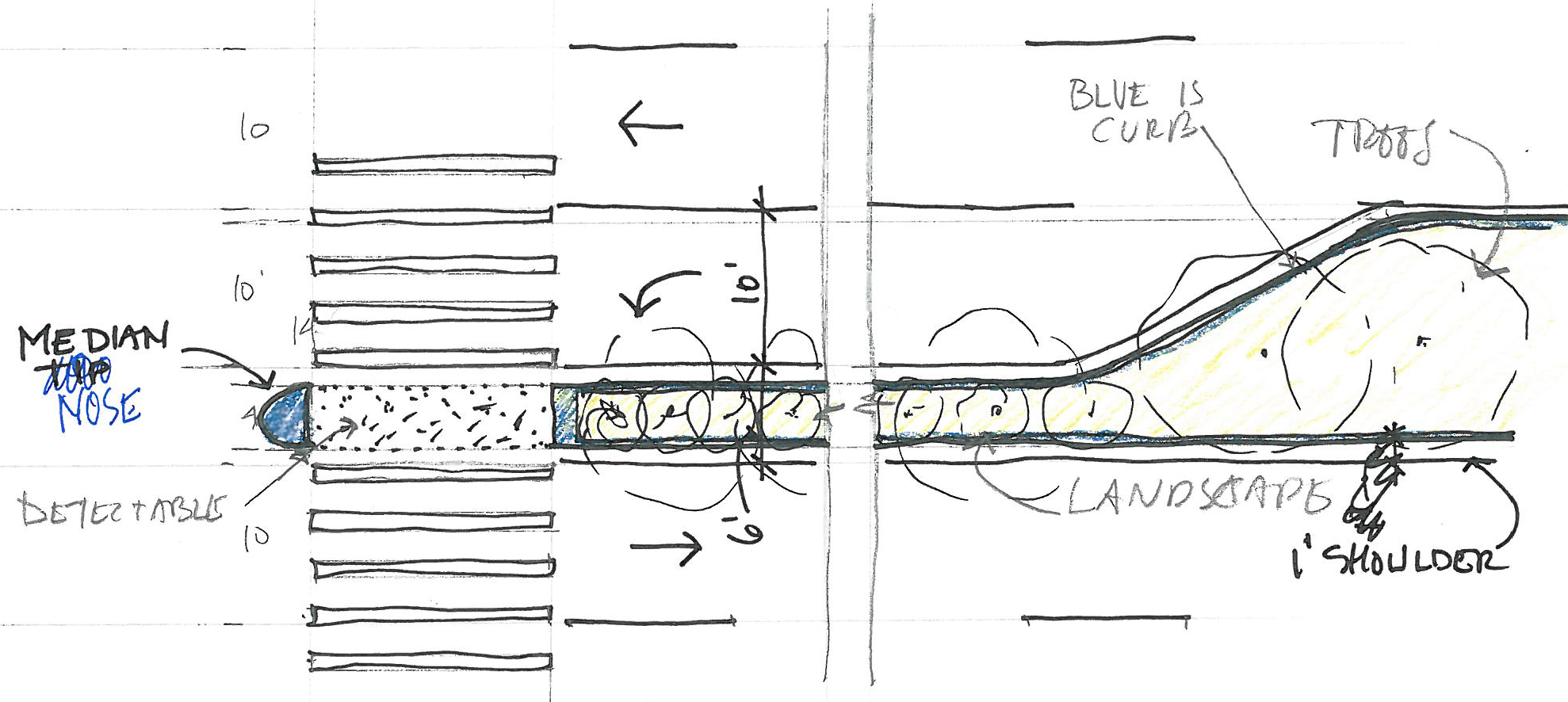

Sketch showing the salient characteristics of a median located at a crosswalk.
DL-23 design vehicle
The DL-23 is the size of a delivery truck like UPS, FedEx, USPS, and DHL. They are longer than a van, but smaller than an SU-30 (a 30-foot long box truck). The DL-23 was not in the standard design vehicle lexicon, and street design suffered.
We first proposed this design for the New Jersey DOT in 1999. We included it in the Chicago Complete Streets guide in 2012, and subsequently in the NACTO USDG. It is now commonly used.
Fun fact: we based it off a design vehicle from the Czech version of AutoTurn.
Truck and car turning speed
A common issue in intersection design is the speed of a car turning around a corner designed for a truck. The larger the design vehicle, the higher the car speed.
Slip lane safety

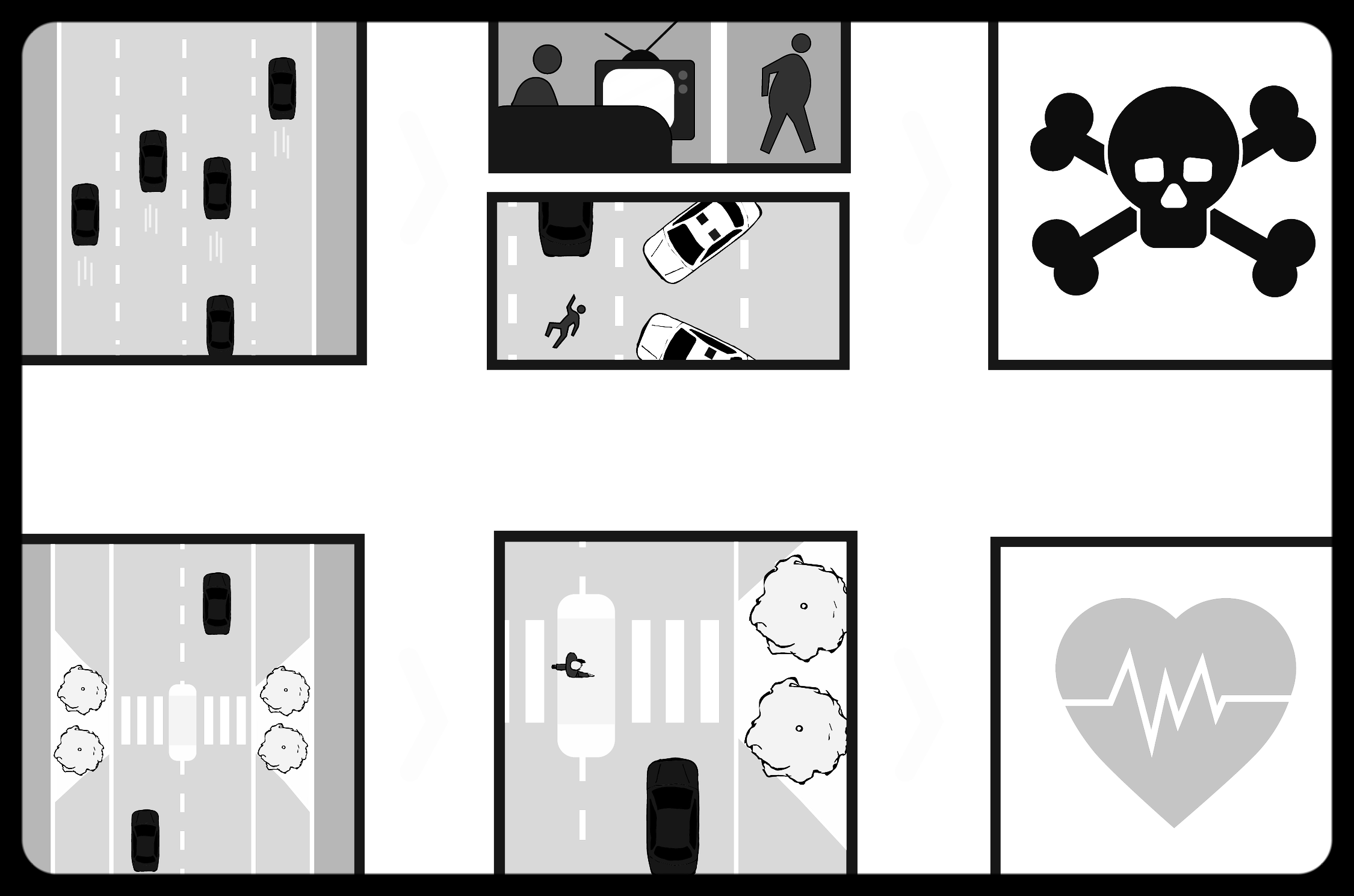

This graphic shows safety issues associated with high-speed slip lanes.
Intersection safety analysis
An analysis of the rather complicated Manacar intersection along the Avenida Insurgentes BRT line in México City. The shaded areas are those that are not necessary for vehicle movements, so could be converted into pedestrian space. The intersection has since been redesigned as a roundabout with tunnel.

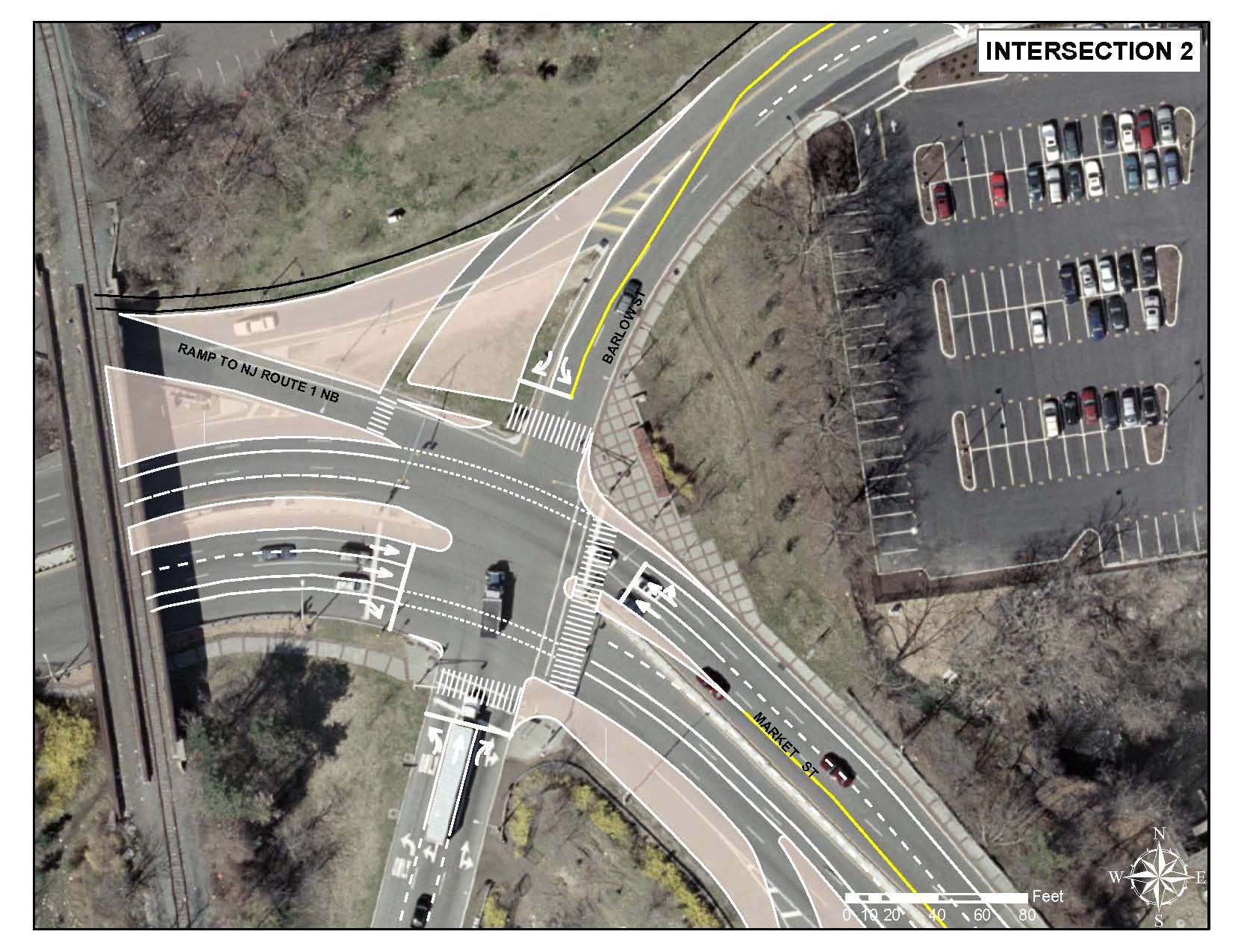

We redesigned this intersection in Trenton NJ to eliminate the elements of highway design.
Leading left turn time-lapse
Series of photographs illustrating how a leading left turn is largely ignored by people walking. Note the car in the 6th frame.
NYC DOT Traffic Calming Program
We started this program in 1996, a precursor to Vision Zero.
This is one of the first 300 speed humps installed. Previously there had been various traffic calming interventions, but never as part of a citywide program.
Most of the humps were installed mid-block, but we placed a few at intersections and crosswalks. We did extensive before and after speed surveys that proved they lowered speeds. We wrote Standard Operating Procedures. The program continues today.
